Project Challenge
The challenges for the Route 295/42/I-76 Direct Connection Contract 3 project are as listed: the launching of temporary bridge, utility relocations and coordination, interim drainage design and implementation, stored and fabricated bridge materials, interim highway lighting design and implementation, pier and post tension/ stressing constructibility, noise control and mitigation, the relocation of 12 housing units, and overall ground improvements.
Project Solution

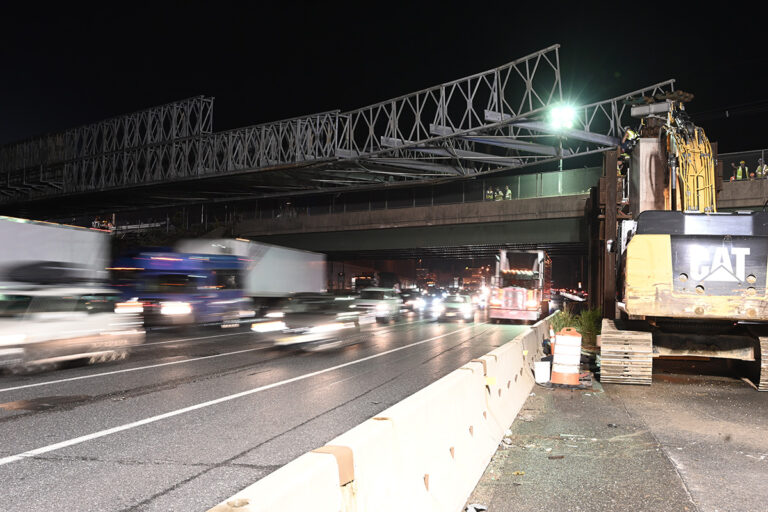

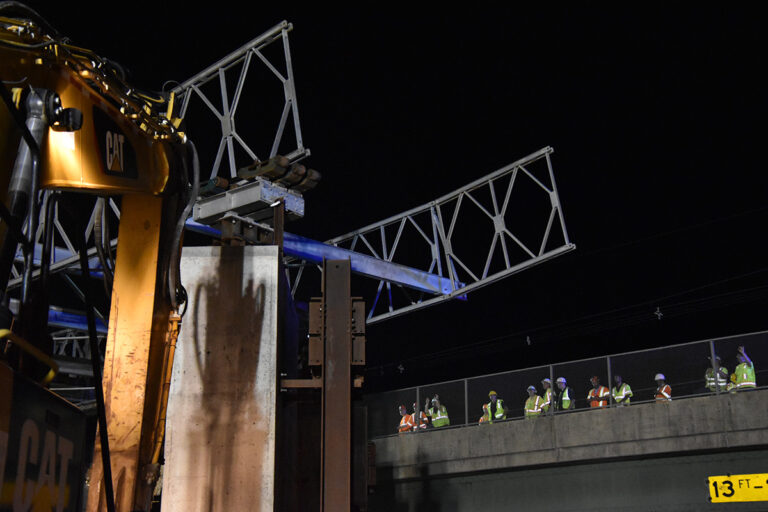

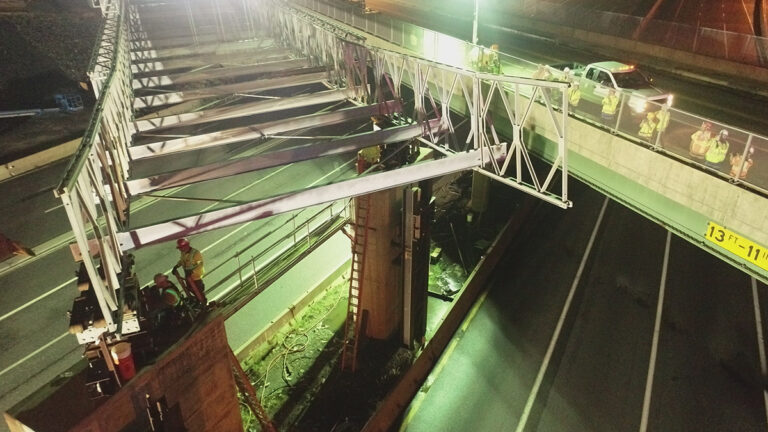

Contract 3 construction focuses on completing the (3) I-295 mainline direct connection bridges over Browning Road and Routes 42 / I-76. It also includes replacing the existing Browning Road Bridge with a Temporary Bridge while the new Browning Road Bridge and improvements are completed. This contract also includes the start of a cut-and-cover tunnel section and is located within the confines of a “boat section” where the proposed roadway pavement is located below the ground water table along I-76.

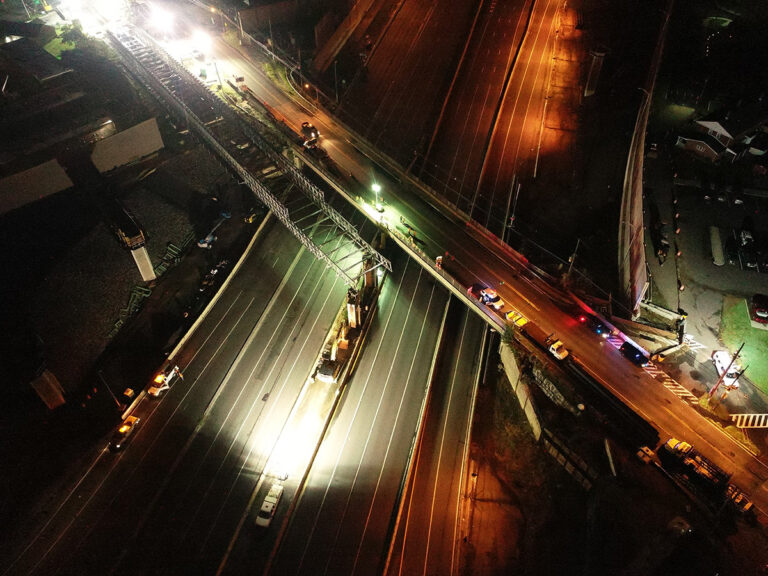

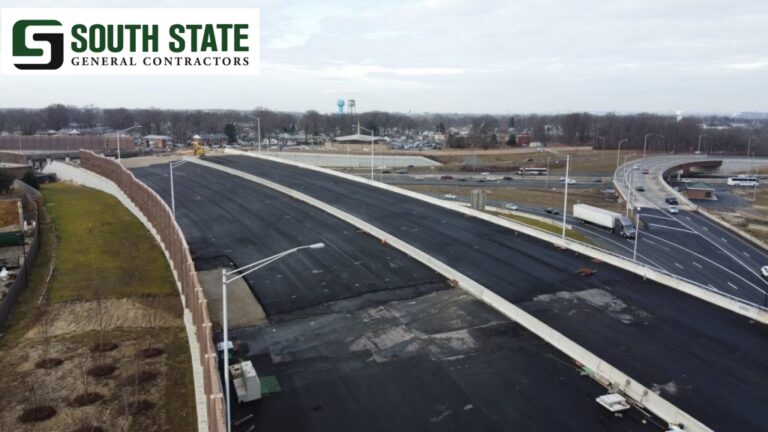

Project Gallery
Project Owner:
New Jersey Department of Transportation (NJDOT)
Location:
Camden County
Contract Value:
$192,155,989
Project Scope
A summary of the major structural features is as follows:
- 10 new bridge structures
- Widening of 1 existing bridge
- 1 culvert extension
- 23 retaining walls totaling more than 12,500 feet in length a
- 13,500 feet of Noise walls
- 36 new sign structures
- 2 new DMS sign structures
- 436,842 Tons of Disposal of Regulated Material
- 156,055 CY of I-14 Soil Aggregate
- 12,588 SY of Column Supported Embankment System
- 24,493 Tons of Hot Mix Asphalt 12.5 M E Surface Course
- 35,895 Tons of Hot Mix Asphalt 25 M 64 Base Course

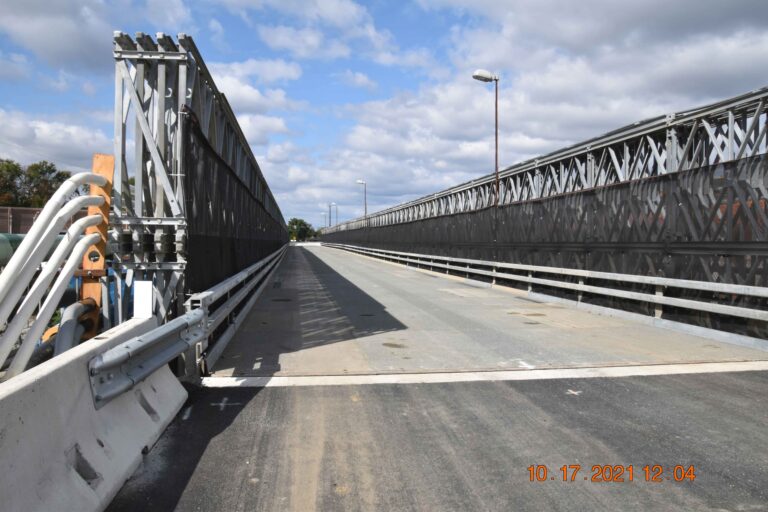

- 450 LF Temporary Bridge, 2-way Traffic
- 8,000 LF of Secant Wall
- 71,960 SF of Temporary Sheeting
- 6,046 LF of Drilled Shaft in Soil 54” Diameter
- 2,795,556 LB of Reinforcement Steel, Epoxy-Coated
- 5,129 CY of Mass Concrete Footing
- 8,023 CY of Concrete Bridge Deck, HPC
- 10,379 SF of Steel Soldier Piles
